2 outer walls, 2 inner walls load, 1 inner wall simple, 1 floor
towards lower floor, 1 ceiling towards attic, 1 roof towards
outside
Overview
Model for a room with
2 outer walls, 2 inner walls load
towards two different rooms but with the same
orientation, 1 inner wall simple, 1 floor towards lower floor, 1 ceiling towards attic, 1 roof towards outside.
Concept

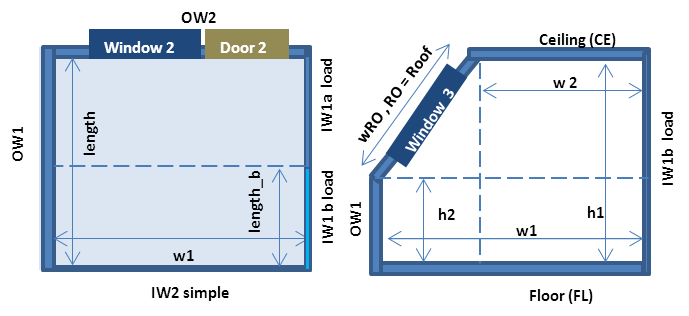

The following figure presents the room's layout:
- April 23, 2020 by Philipp Mehrfeld:
#752:
Propagate all parameters correctly. Extend from new partial room
model. Delete TIR and TMC. Tidy up.
- April 18, 2014 by Ana Constantin:
Added documentation
- July 8, 2011 by Ana Constantin:
Implemented
