.BuildSysPro.IBPSA.Fluid.Movers.Validation.PowerEuler

Information

This example is identical to IBPSA.Fluid.Movers.Validation.PowerSimplified, except that the efficiency of the flow controlled pumps pump_dp and pump_m_flow is estimated by using the Euler number and its correlation as implemented in IBPSA.Fluid.Movers.BaseClasses.Euler.

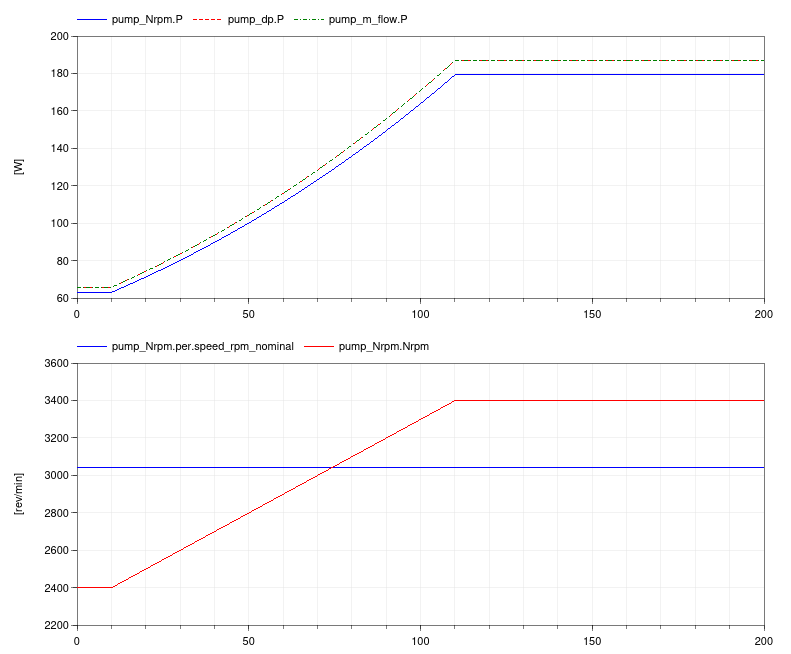

The figure below shows the approximation error for the power calculation where the speed N_rpm differs from the nominal speed N_nominal.

Revisions

• November 22, 2021, by Hongxiang Fu:
  First implementation.
