.BusinessSimulation.CausalLoop.Proportionality

Information

This information is part of the Business Simulation Library (BSL). Please support this work and ► donate.

Proportionality expresses the fact that the rate of change for an influenced stock B is proportional to the net rate of change for an influencing stock A, which is connected via the stockInfoInput. The factor of proportionality k is given by the parameter coefficient. The rate of change for the stock B that is connected to the flowPort accordingly is given by the following equation, which uses Newton's dot notation for rates:

Implementation

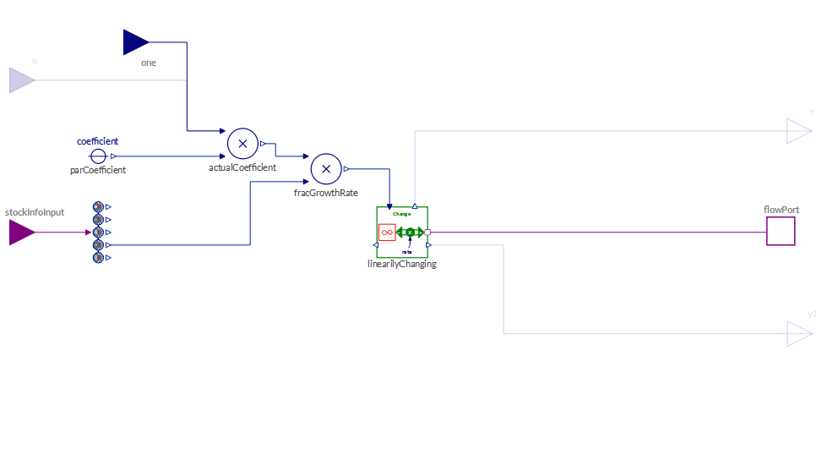

DiagramView

Notes

• The given coefficient can optionally be multiplied by an exogenous input u.


• By setting coefficient = 1 the input u can be used to provide a variable factor of proportionality.

See also

ProportionalityDelayed, Elasticity, ElasticityDelayed

Revisions

• Introduced in v2.0.0.
