.Credibility.Examples.SimpleControlledDriveNonlinear .Credibility.Examples.SimpleControlledDriveNonlinearThis package contains an example of a simple 1-dim. drive train and all classes demonstrating a possible usage of parameter credibility information within the context of this drive train. Most important:

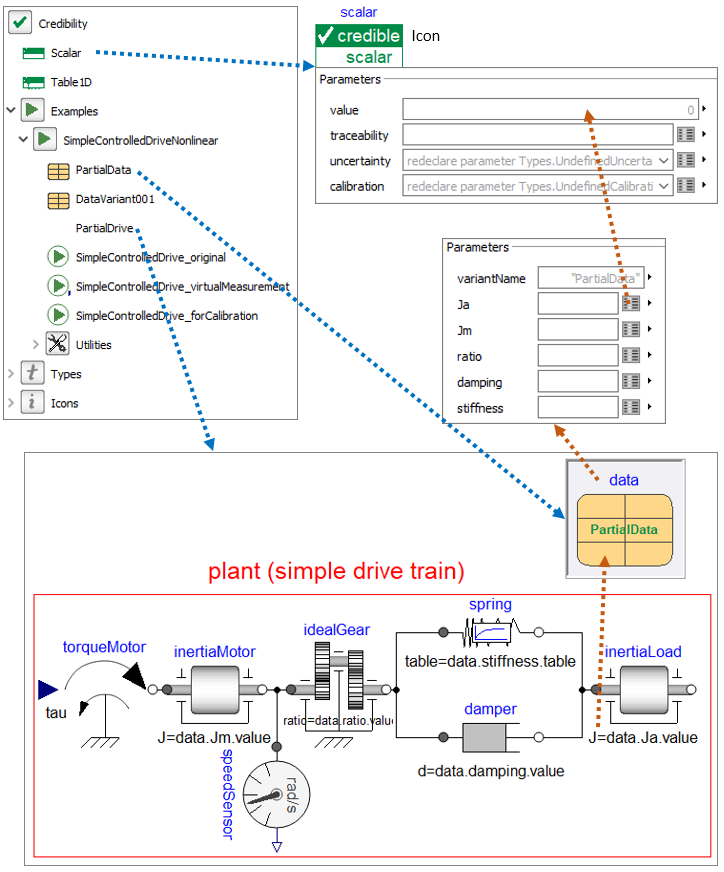

PartialDrive is a partial model of a drive train with credibility information. The structure can be seen in the following image (from [Otter2022]):

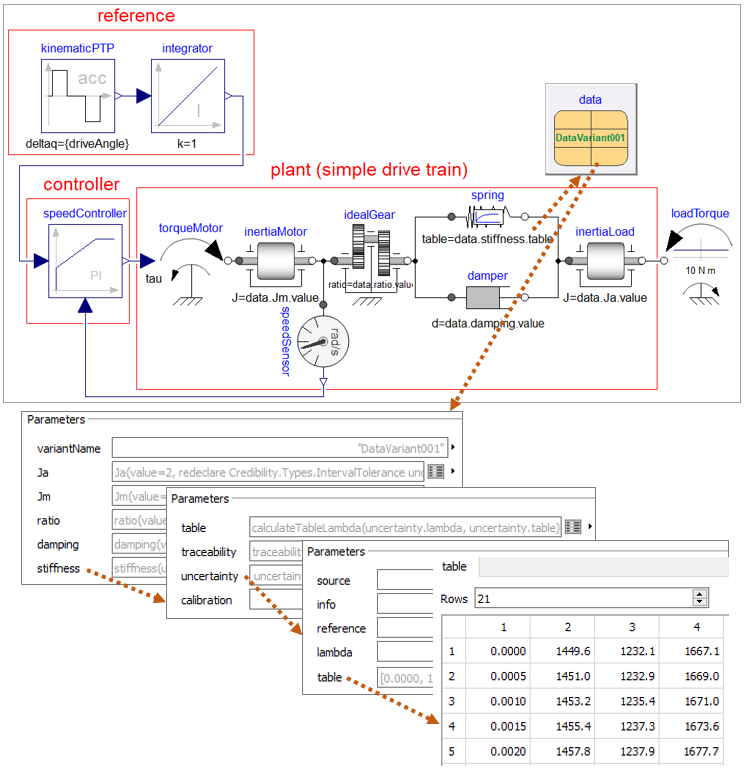

SimpleControlledDrive_original uses the partial model of the drive train, adds a controller and concrete values including credibility information by replacing the PartialData record with DataVariant001. In particular nominal, upper/lower limit values for the table of the gear compliance are provided (image from [Otter2022]):
| Name | Description |
|---|---|
 PartialData |
Base record of credible parameters of simple control drive |
 DataVariant001 |
Data set of model variant 001 |
 PartialDrive |
Not calibrated drive model with nonlinear compliance |
 SimpleControlledDrive_original |
Controlled drive train |
 SimpleControlledDrive_virtualMeasurement |
Drive train for virtual measurements |
 SimpleControlledDrive_forCalibration |
Base model for calibration |
 SimpleDrive_forFMU |
Original model parameterized with DataVariant001 for FMU generation |
 Utilities |
Collection of utility models for examples |
