modelReference

Reference solution in pure Modelica

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

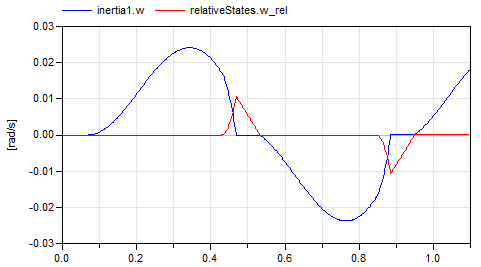

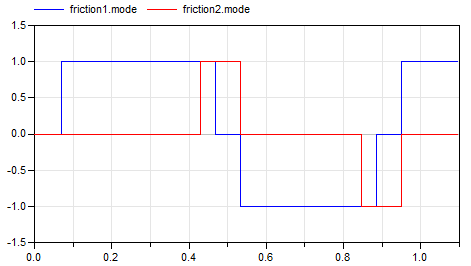

The parameters are selected so that both friction elements are partly sliding (mode = +/- 1) or partly stuck (mode = 0). Plot the following variables:

Components

TypeNameDefaultDescription
Modelica.Mechanics.Rotational.Components.Inertiainertia1
Modelica.Mechanics.Rotational.Components.Inertiainertia2
Modelica.Mechanics.Rotational.Sources.Torquetorque
Modelica.Blocks.Sources.Sinesine
Modelica.Mechanics.Rotational.Components.BearingFrictionfriction1
Modelica.Mechanics.Rotational.Components.BearingFrictionfriction2
Modelica.Mechanics.Rotational.Components.RelativeStatesrelativeStates
