blockConstantRealFault
Generate constant signal of type Real
Extends from Modelica.Blocks.Interfaces.SO (Single Output continuous control block), FaultTriggering.FaultOutput.Internal.InternalConstantRealFault (Generate constant Fault of type Real).
Information
This block is used to simulate a constant fault. Using the function FaultTriggering.createFaultPackage all the faults in the model can be found and set.

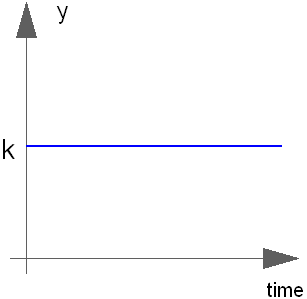

The Real output y is a constant signal:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| FaultTriggering.Utilities.Types.Parameter_Fault_Real | constRealFault (from InternalConstantRealFault) | 1 | Constant output value |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| RealOutput | y (from SO) | Connector of Real output signal |
Revisions
 |
