Velocity control of an electric engine with Automatic Tuning
Description
Velocity control of an electric engine with a PI
controller.

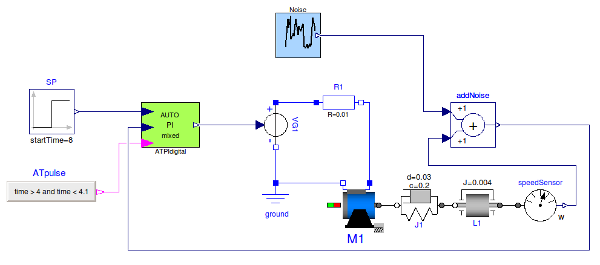

The PI controller regulates the voltage source of the electric
engine, and measures its angular velocity (corrupted by noise). The
aim of this example is to show how a controller with Automatic
Tuning can be used in a real context.
In the following table are listed the controller parameters before
and after the Automatic tuning
| Parameter |
Before |
After AT |
| Kp |
0.2 |
0.5167 |
| Ti |
0.5 |
0.1399 |
Automatic Tuning algorithm parameters
| Parameter |
Value |
| slope |
5 |
| PermOxPeriodPerc |
5 |
| pm |
70 |
| nOxMin |
3 |
The figure below show the velocity set point, the measured process
variable and the control signal, that is limited between 0 and 24
V.
References
For more information please refers to the following paper:
Efficient hybrid simulation of autotuning PI
controllers
Alberto Leva, Marco Bonvini
8th Modelica Conference, Dresden, Germany
march 20-22, 2011
