Test of a PI controller with Automatic Tuning (mixed mode)

Information

Description

In this example have been tested the functionalities of the mixed mode PI with Automatic Tuning.
The PI has to control the process with transfer function

   Y(s)           1
   ----  =  --------------
   U(s)       (s + 1)^3

There are three PIs that are automatically tuned. The PIs have different Phase Margin requirements: 45, 60 and 70 respectively.

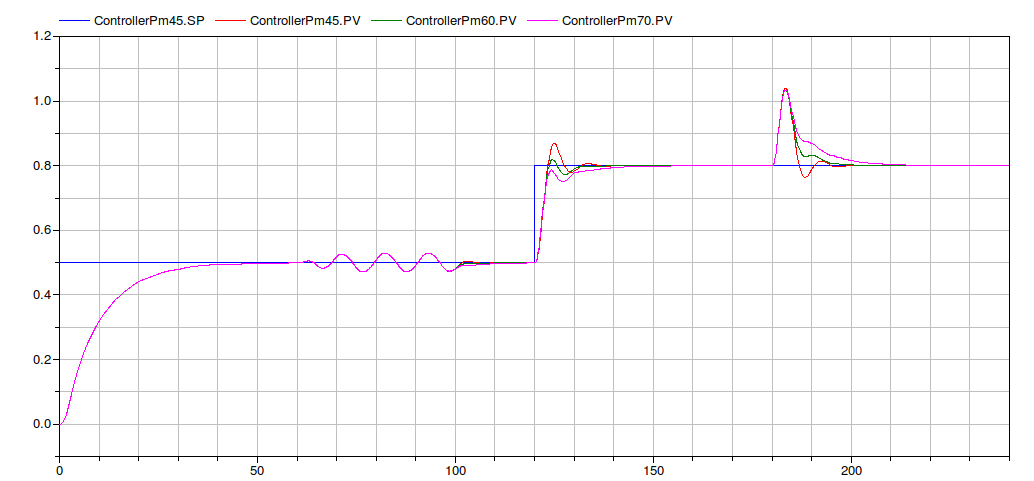

The first image shows the process variables controlled by the three PIs PV.

There are thre phases:

Normal mode [0,50]: PIs working with default parameters values,
Auto Tuning phase [50,120]: PIs excite the processes in order to identify some characteristic parameters,
Normal mode [120,end]: PIs working with tuned parameters values

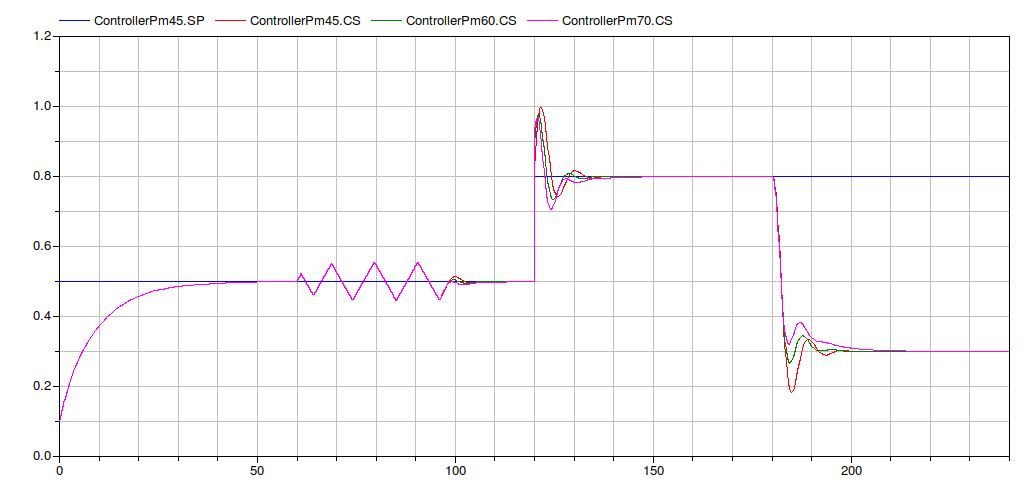

Control signals

References

For more information please refers to the following paper:

Efficient hybrid simulation of autotuning PI controllers
Alberto Leva, Marco Bonvini
8th Modelica Conference, Dresden, Germany
march 20-22, 2011

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012
