Tracking test mode for LL block
Description
In this example has been tested the Tracking mode of the Lead
Lag block.

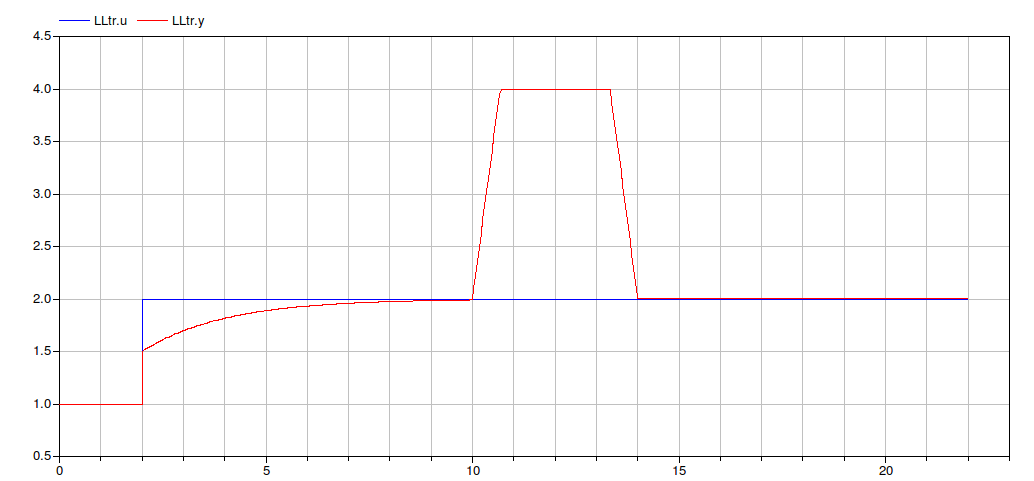

The images show the output y of the
lead Lag block, with a step as input u.
During the tracking phase the stave variable is forced to follow
the Track Reference signal.
input and output

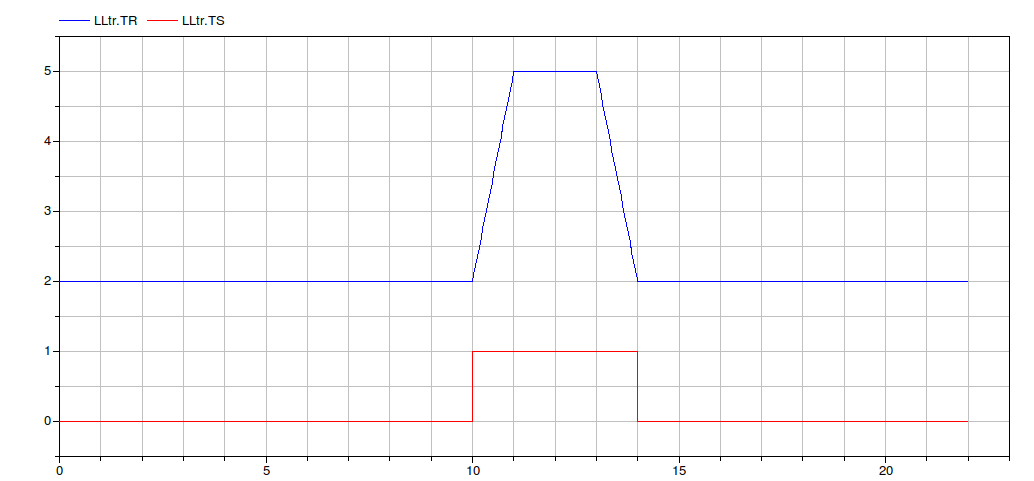

Tracking switch signal and Track reference
