Tracking test mode for P block
Description
In this example has been tested the Tracking mode of the
proportional block.
The images show the output y of the
proportional controller, with a sine wave as input u.

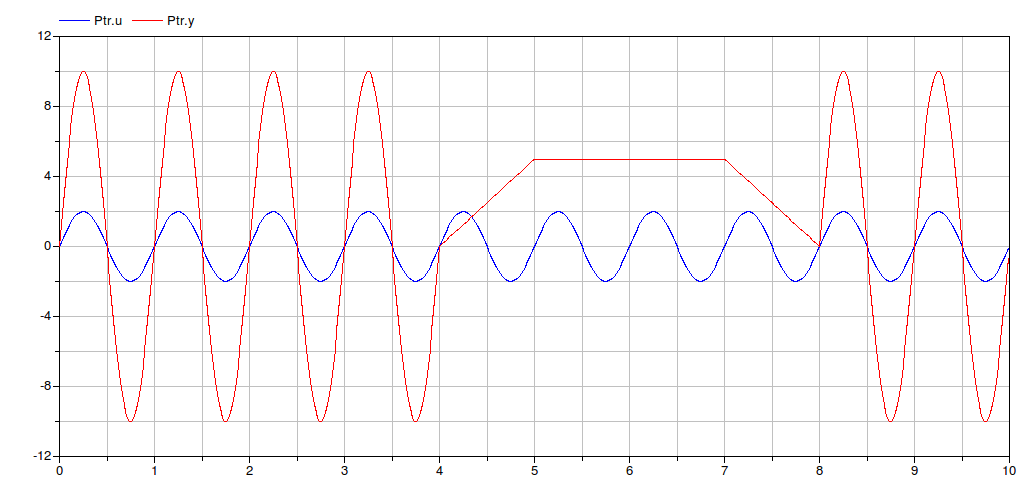

input and output

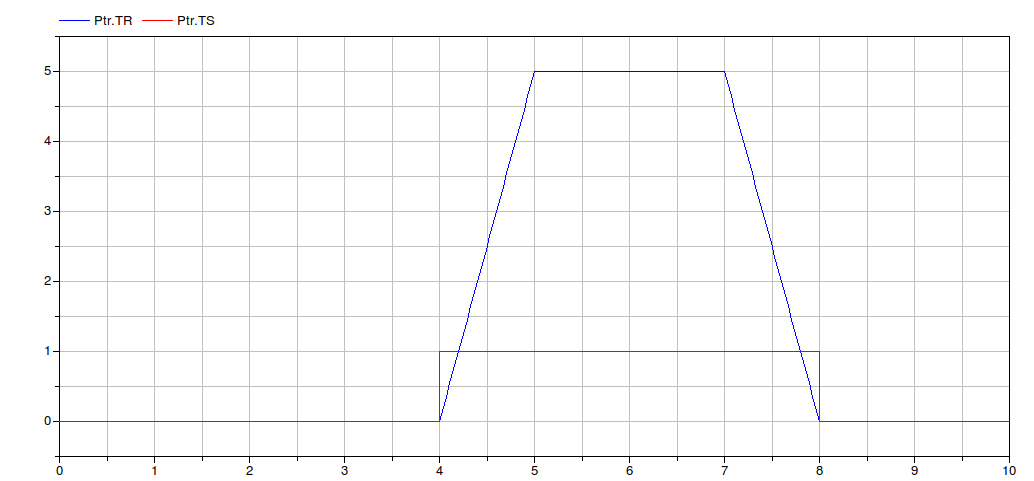

Tracking switch signal and Track reference
