.IndustrialControlSystems.Controllers.D

Real derivative controller

Information

Description

Real derivative controller with Automatic, Tracking mode and bias signal.
The control law is defined as

              sTd
  CS(s) = ------------ (SP(s) - PV(S))
           1 + sTd/N

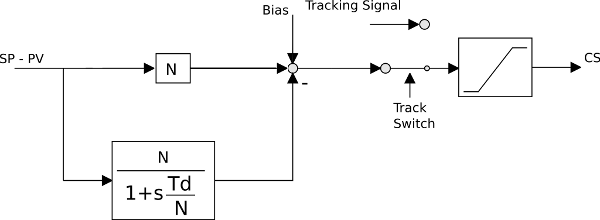

Scheme

Name	Description	Conditional?
SP	Set Point	NO
PV	Process Variable	NO
CS	Control Signal	NO
TR	Track Reference signal	YES (useTS)
TS	Track Switch signal	YES (useTS)
Bias	Biasing signal	YES (useBIAS)
ATreq	AutoTuning request	YES (*)

(*) AutoTuning Not available here, please see the package
AutoTuning

The controller can have various operating conditions:

Automatic,
and Tracking

In the Automatic mode, the control output is computed with the integral control law, while in the tracking mode
it is defined by the input TR.

To note that in the tracking mode the output signal CS is equal to TR.

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012

List of revisions:

11 May 2012 (author: Marco Bonvini)

Main Authors:: Marco Bonvini; <bonvini@elet.polimi.it>; Alberto Leva <leva@elet.polimi.it>; Politecnico di Milano; Dipartimento di Elettronica e Informazione; Via Ponzio 34/5; 20133 Milano - ITALIA -
Copyright:: Copyright © 2010-2012, Marco Bonvini and Alberto Leva.; The IndustrialControlSystems package is free software; it can be redistributed and/or modified under the terms of the Modelica license.
