.IndustrialControlSystems.MathOperations.RealType.Signals.SmoothStepSignal .IndustrialControlSystems.MathOperations.RealType.Signals.SmoothStepSignalModel of a smooth step signal.

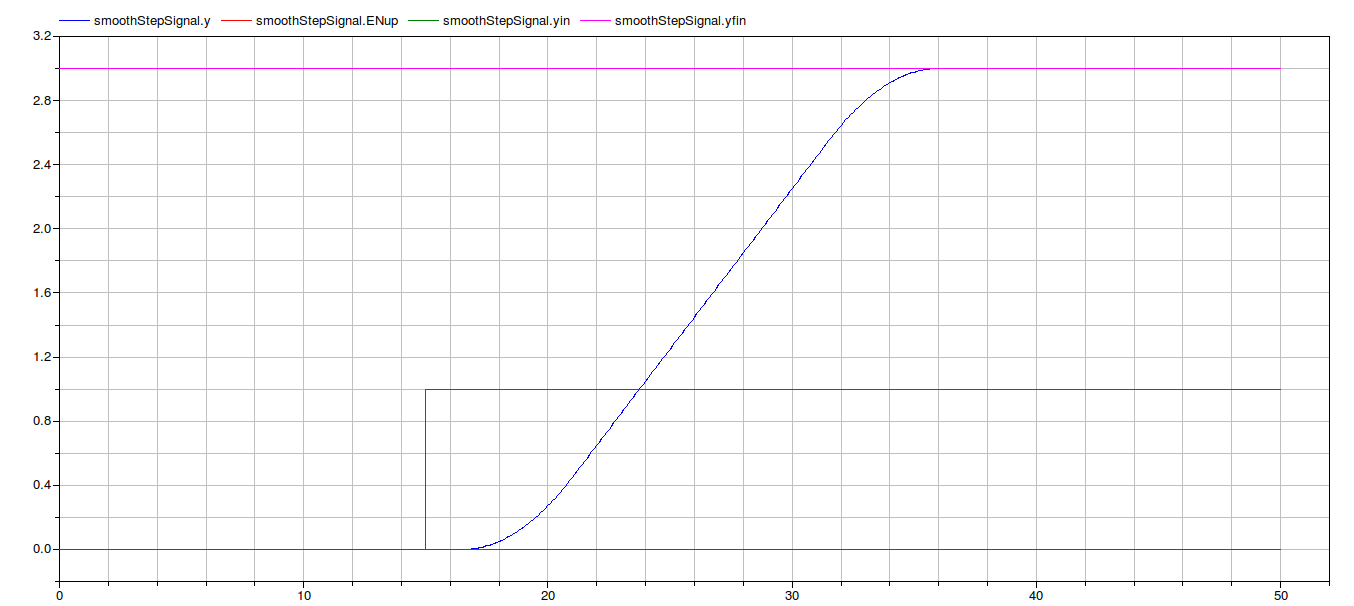

The output ( y ) remains at its initial
value yin until the enabling input
ENup remains false.
Then the signal changes smoothly. After the smoth start the signal
grows up linearly with a slope m. When
the output signal is close to the final value yfin, it is reached smoothly.
The parameter alfa (that has to be
coprises between 0 and 1), indicates the portion of the rising time
occupied by the smooth junction.
In this case alfa = 0.1, this indicates
that each junction occupy the 10 % of the total rising time.
The additional parameter Delay = 1.5,
indicates that the output has to be delayed by 1.5 seconds.
Fixed Point not available in this model
