.SystemDynamics.IntroductoryExamples.Sugar_Cane

Model of osmosis process in sugar cane

Information

The sugar cane model describes the processes of diffusion and osmosis in a sugar cane plant. The model was adapted from the STELLA manual.

References:

  1. Richmond, B., S. Peterson, and P. Vescuso (1987), An Academic User's Guide to STELLA, High Performance Systems, Inc., Lyme, N.H.

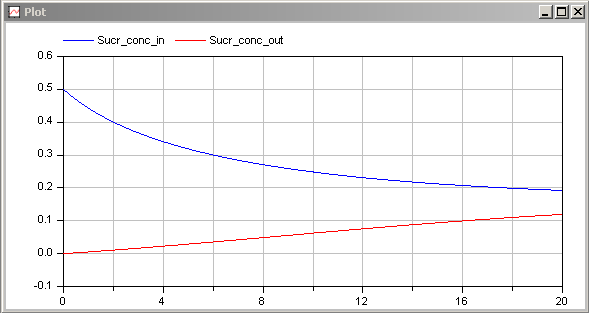

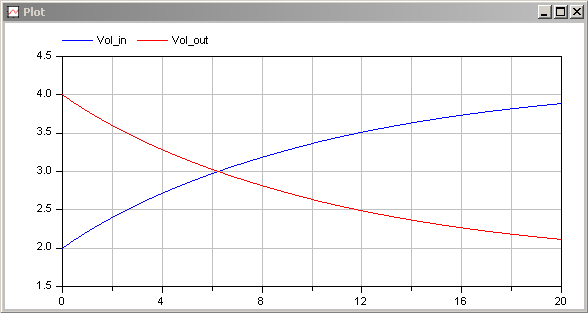

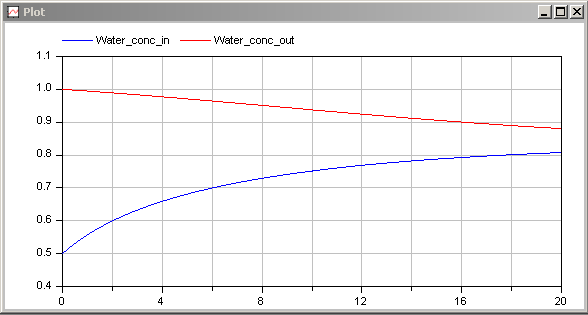

Simulate the model across 20 time units and plot on three separate graphs the two water concentrations (inside and outside), the two sugar concentrations, and the two volumes:
