.Buildings.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6

Information

Data from http://productfinder.wilo.com/en/COM/product/00000018000028040002003a/fc_product_datasheet

Pump curves (H(m_flow) and P(m_flow)) from the data sheets are digitized using web plot digitizer.

Limitations:

• The pump curve cap at high speed that can be seen is not enforced by the model.
• The pump curve may be altered slightly to guarantee that dp/dm<0

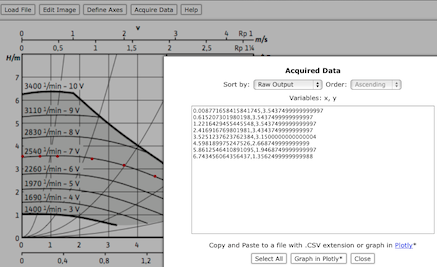

The figure below illustrates a digitized pump curve.

Revisions

• March 29, 2023, by Hongxiang Fu:
  Deleted angular speed parameters with the unit rpm. This is for IBPSA, #1704.
• October 14, 2021, by Hongxiang Fu:
  Rewrote the statements using use_powerCharacteristic to support the implementation of Buildings.Fluid.Movers.BaseClasses.Euler. This is for #2668.
• February 17, 2016, by Michael Wetter:
  Updated parameter names for #396.
• December 12, 2014, by Michael Wetter:
  Added defaultComponentPrefixes and defaultComponentName annotations.
• April 17, 2014 by Filip Jorissen:
  Initial version
