.Buildings.Obsolete.Fluid.Movers.Validation.PowerExact

Information

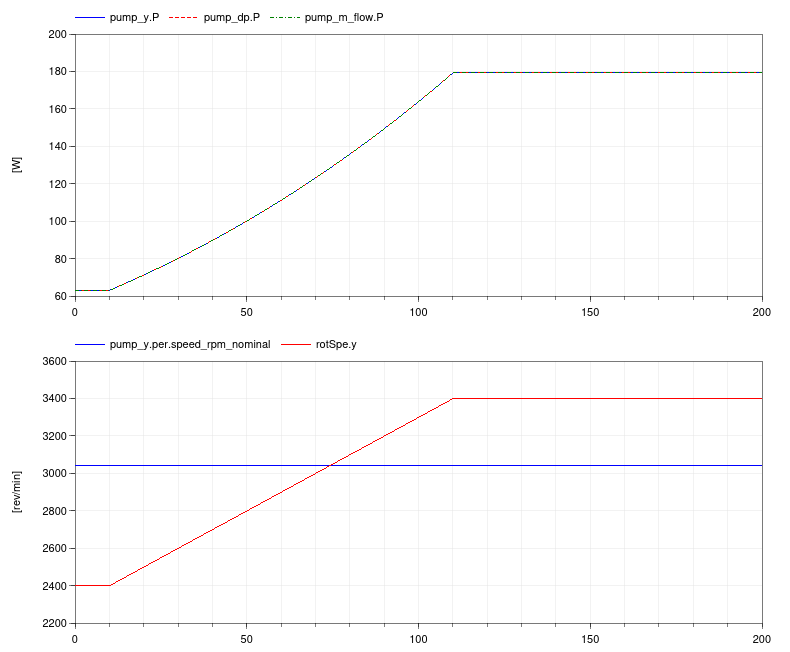

This example is identical to Buildings.Obsolete.Fluid.Movers.Validation.PowerSimplified, except that the performance data for the flow controlled pumps pump_dp and pump_m_flow contain the pressure curves and efficiency curves. The plot below shows that this leads to a computation of the power consumption that is identical to the one from the speed controlled pump pump_y.

Revisions

• May 14, 2024, by Hongxiang Fu:
  Moved this model to the Obsolete package. This is for IBPSA, #1880.
• October 15, 2021, by Hongxiang Fu:
  Fixed the image in the documentation which was cut off at the y-axis. This is for IBPSA, #1533.
• March 2, 2016, by Filip Jorissen:
  First implementation for #417.
