Antiwindup TEST
Description
In this example has been tested the AntiWindup.
The images show the step responces of the transfer functions
without limiter, and with an higher limit of Ymax = 1.8

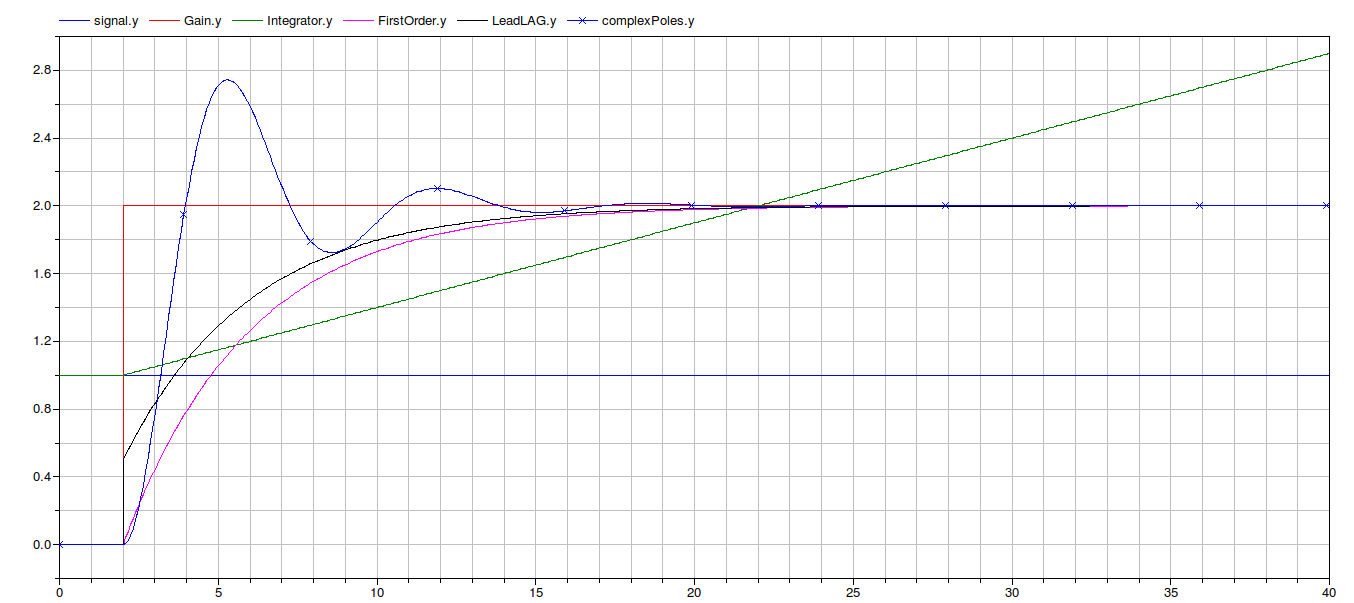

No Antiwindup

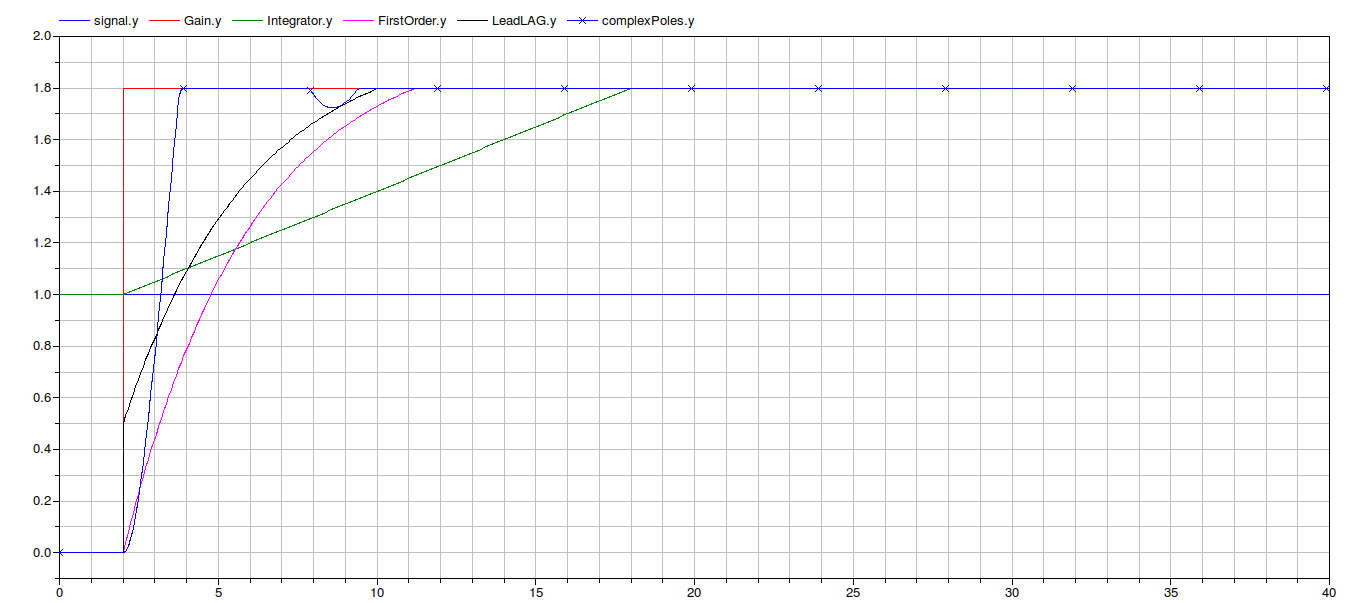

Antiwindup
