Comparison of the basic continuous and discrete time blocks
Description of the example
In this example are shown the step responces of various basic
linear systems:
- integrator,
- first order,
- lead lag,
- and complex poles
For each continuous time system there is its discretised version.
It is possible to modify the discretisation methods
as well the sampling time in order to see the changes.
Continuous time

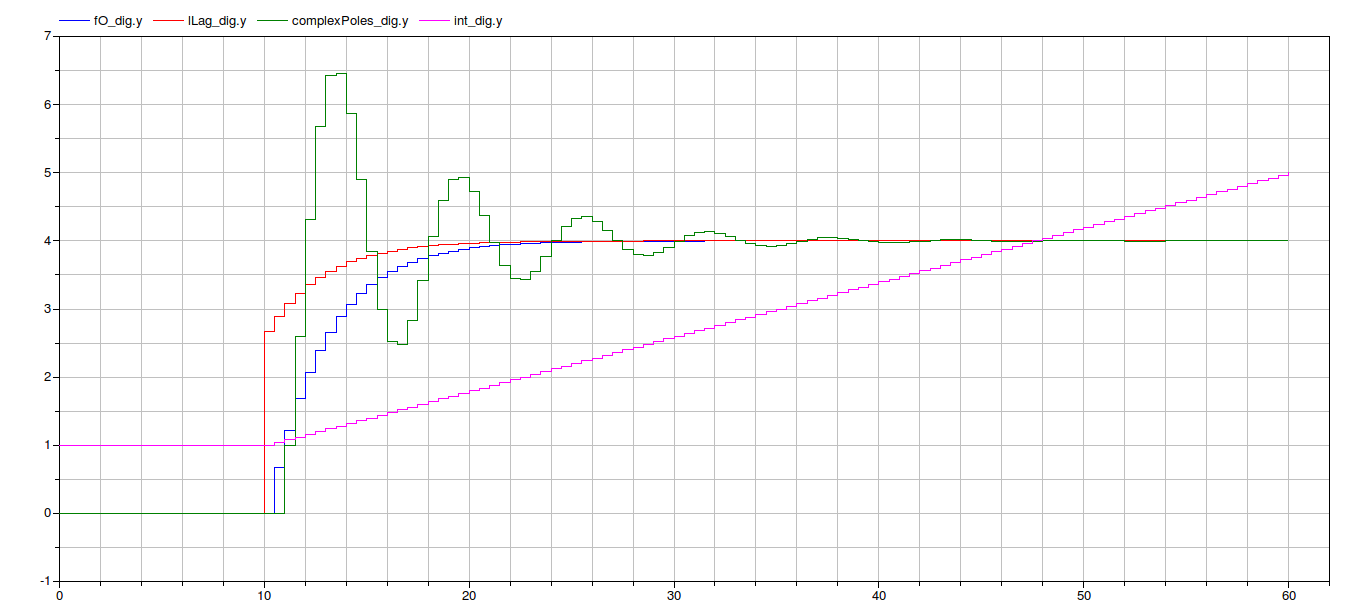

Discrete time (Forward Euler)
