packageActuator

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Information

In this model several noise scenarios have been prepared:

  1. no noise
  2. Noise using PRNG
  3. Noise using LinearSystems2


The frequency content of the signals is comparable:

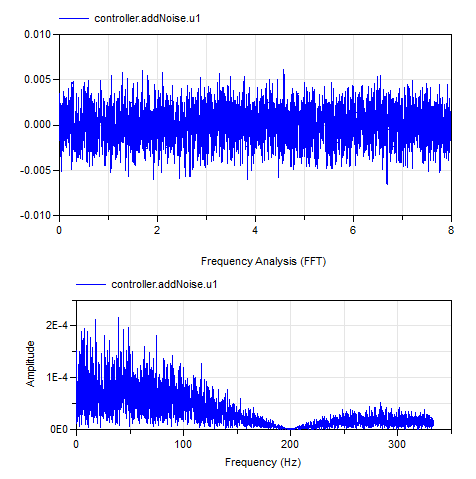

The time and frequency domain plot of the linearsystems noise is:

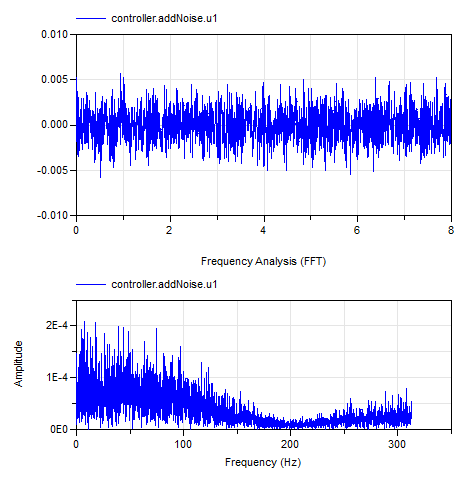

and the time and frequency domain plot of the PRNG using a Bates distribution noise is:



This leads to comparable noise signatures. In practice, the simulations using the PRNG block are faster, since less time events have to be handled.

Contents

NameDescription
Actuator
ActuatorLinearSystemsNoise
ActuatorPRNGNoise
Parts

Revisions

Developed 2014 at the DLR Institute of System Dynamics and Control
